Co., 주식 회사를 설계하는 우한 세계적인 금속
히이터 & 감지기의 초기 제조자
 |
| 원래 장소: | 중국 |
| 브랜드 이름: | GME |
| 최소 주문 수량: | 5 PC |
|---|---|
| 포장 세부 사항: | 표준 수출 패키지 |
| 배달 시간: | 10-15 일 |
| 지불 조건: | L / C, 서부 동맹, T / T, Paypal |
| 공급 능력: | 달 당 20,000 PC |
| 이너 부쉬 재료: | 구리 | 피복 재료: | 스테인레스 강 |
|---|---|---|---|
| 난방 철사: | 니크롬 | 절연체 재료: | MgO |
| 횡단면: | 2.2 Ｘ 4.2 밀리미터, 3.2 Ｘ 1.8 밀리미터, Dia 1.8 밀리미터, Etc | 와이어 시스를 이끄세요: | 맞춤화되는 섬유 유리 또는 강철 메쉬 |
| 열전대: | 이용 가능합니다 | 애플리케이션: | 인젝션 성형에서 노즐 난방 |
| 하이 라이트: | 미세관 코일 히터,고온 탕도 코일 히터는 극소 관（형） 가열기를 구리도금합니다,Copper Micro Tubular Heater |
||

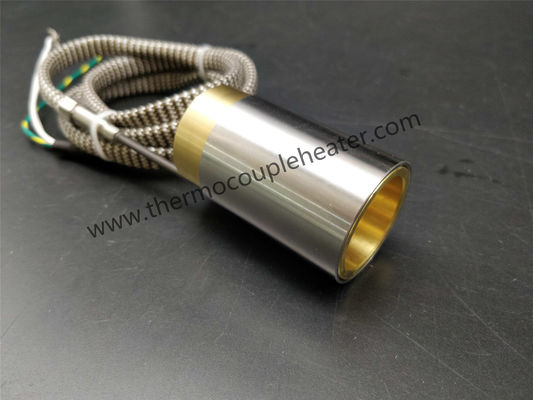

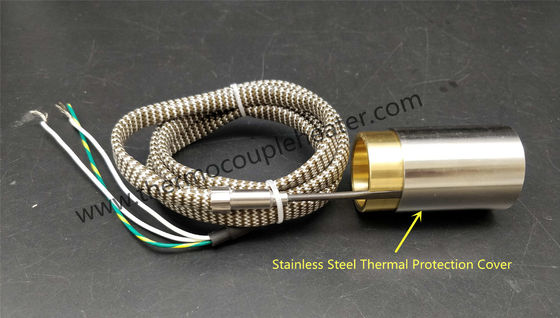

Hot Runner Nozzle Copper Microtubular Coil Heater With Thermal Protection Cover
1. Introduction
GME is one of the reputed manufacturers of Pressed in Brass Coil Heater all over the globe. Manufactured using superior quality material, these products are suitable for eliminating known problems that are associated with the casting process in spectrometry industries. Our range is capable of functioning 8% faster than cast in brass heaters. The component integrated in the brass for the heater enables in facilitating exact repeatability of heat profile. Furthermore, even when the coil heaters are exposed with molten brass, there would be no destruction of the thermocouple junction. Our products are available in flexible designs like internal, external “wound in” or external slotted type J or type K thermocouple.
2. Characteristics
1). Tight fit on nozzle
2). Optimal heat distribution
3). Up to 1200°F at inner brass casing
4). Superior heat transfer
5). Highly non-corrosive
6). Built-in Type J or Type K thermocouple
3. Parameter
| Spring coil heater (H series) | 3.0x3.0 3.3x3.3 4.0x2.0 4.2x2.2 4.5x2.7 |
Φ3.0 | Φ4.0 | Φ5.0 | 3.5x3.5 4.0x4.0 |
5.0x5.0 |
| Voltage | 220V,230V,240V | |||||
| Power tolerance 115W-200W | +/-10% | |||||
| Power tolerance 201W-2000W | +5%-10% | |||||
| Out jacket length | 30mm~280mm | |||||
| Diameter of the inner sleeve/wrapped diameter | 10mm~42mm | |||||
| Unheating length | 45mm | |||||
| Max power density | 9W/cm² | |||||
| Heating Length tolerance | +/-0.05mm | |||||
| Unheating length tolerance | +/-2.5% | |||||
| Tolerance ID d ≤20mm | Without inner sleeve:-0.15mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance ID d 20mm~30mm | Without inner sleeve:-0.20mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance ID d ≥30mm | Without inner sleeve:-0.25mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance cross section | +/-0.15mm | +/-0.20mm | ||||
| Thermocouple | K,J,E | None | ||||
| Material | 304,321,316 | |||||
| Maximum working temperature | 650℃ | |||||
| Die electrical strength | 800V | 1000V | ||||
4. Application
Hot runner heater is the important component of hot runner system, which is made of special technque and high quality material, ensuring its efficient work in the close space, even when the heating jacket temperature is 700 degrees Celsius. Complying with the metric system and the international standard, all models are on the basis of VDE0721 quality inspection requirements, so as to meet most factories and hot runner machines.
we provide several kinds of heaters, such as pipe heater, press in brass heater, coil heater and so on.
hot runner system
plastic industry
packaging machinery
medical equipment
casting process
other electric heating industry
