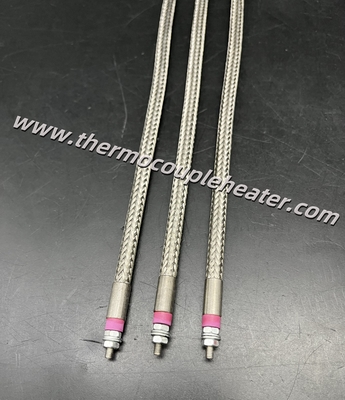

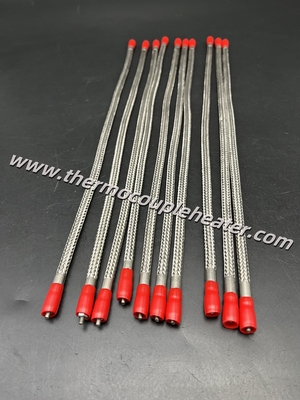

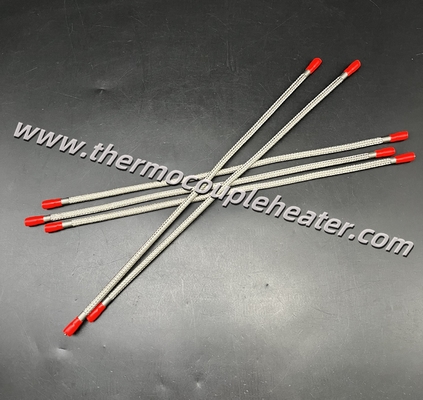

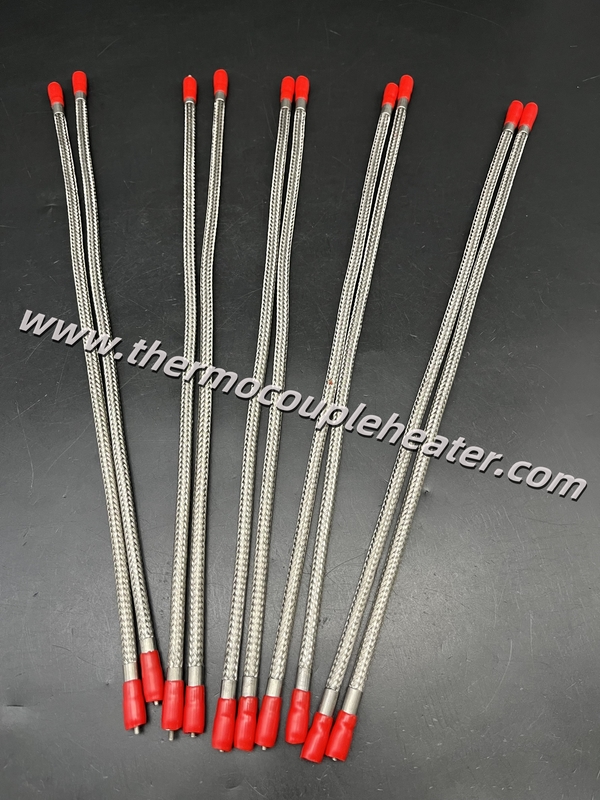

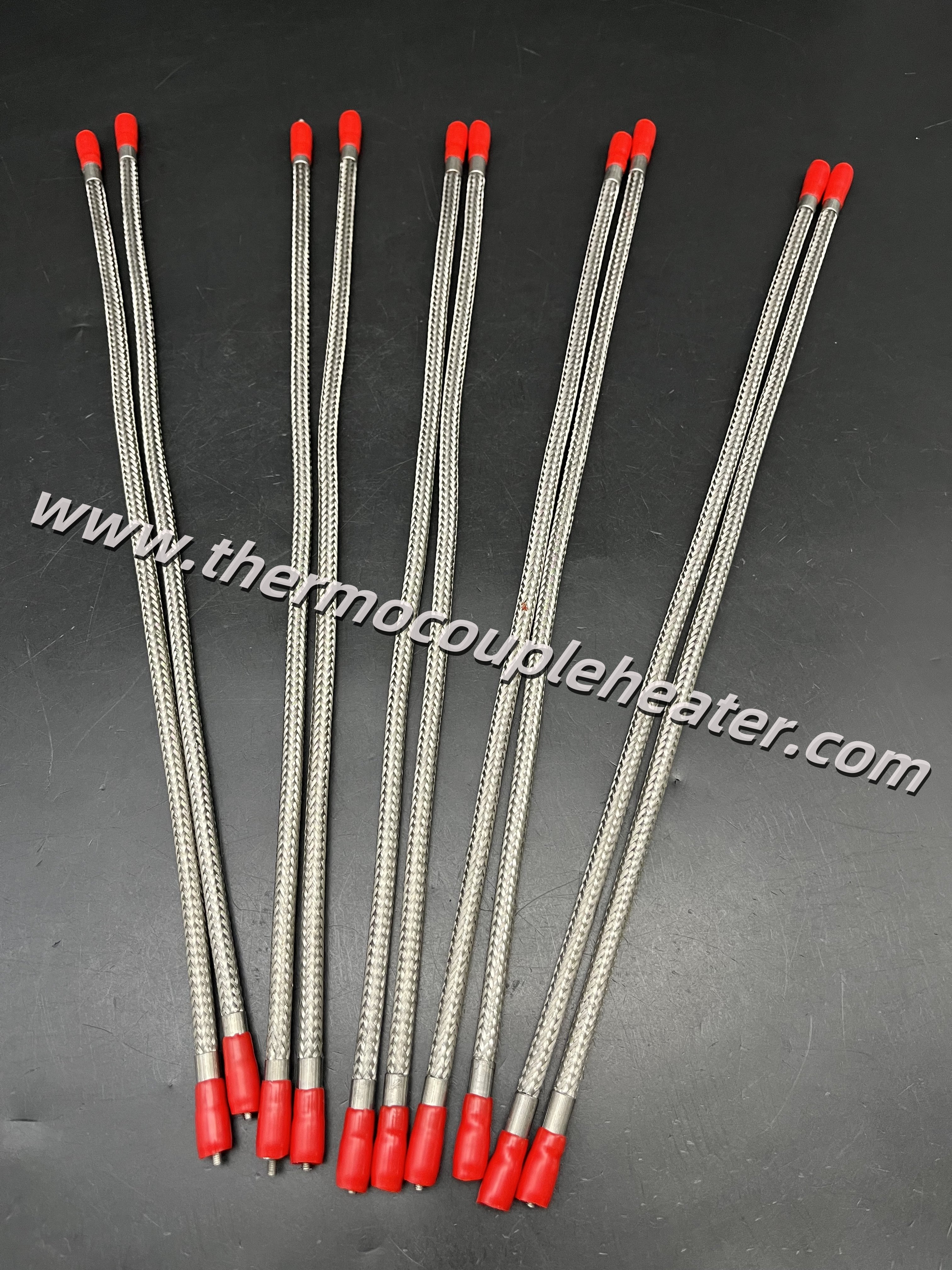

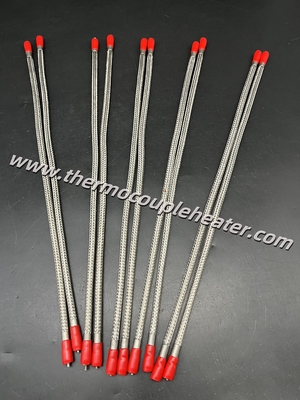

Description:
Flexible Tubular Heaters can be used in a variety of industrial heating applications that require process heating temperatures up to 750°C (1382°F).
The tubular heating elements could be factory formed to almost any shape or size. Custom bending diameters can be made upon request. Our electric tubular heater offers a selection of diameters and sheath material options, including incoloy or stainless steel.
Simplify your machine design, or reduce the maintenance time and cost by using our flexible tubular heaters.
Technical Parameter:
| Item |
Test Condition |
| Voltage |
110~400V |
| Sheath material |
Stainless steel |
| Wattage tolerance |
+5% / -10% |
| Available connection types |
Threaded pin, lead cable, welded terminal |
| Dielectric strength |
1500V |
| Insulation |
＞10MΩ |
| Leakage current (cold) |
＜0.5mA |
| Max. Sheath temperature |
750°C (1382°F) |
| Unheated length |
30±5mm |
| Available version |
Straight or bend as per benchmark 1:1 drawings |

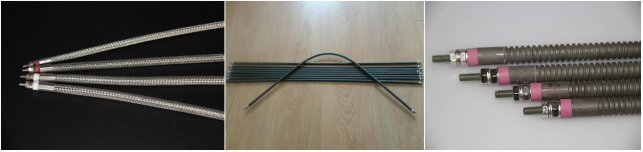

| Surface |
Smooth, braided, corrugated |
| Section |
Φ6, Φ6.5, Φ6.6, Φ8, Φ8.5, 6x6, 8x8mm |
| Overall length |
300-2000mm |
Features:
Custom-formed to meet specific requirements
Stored in a straight condition to save storage space
No special installation tools required
Rapid heat-up times
Heaters are swaged for rapid heat transfer
Variety of lengths available
Reduced energy costs, so tool mass can be reduced
Application:
Plastic Processing machinery
Dies and Tools
Medical equipment
Heating chemical solutions
Packaging machinery
Ovens & Dryers
Many other applications
