| 전원: | 전기 같은 | 차원: | 맞춤형 |
|---|---|---|---|
| 전압: | 12-480V | 외피 재료: | 스테인레스 강 또는 니켈 |
| 스타일: | Ｋ, Ｊ, | 리드 와이어: | 구리,, 섬유 유리 실리콘 |
| 단열재: | MGO | 발열체: | 니크롬 저항 |
| 나사산: | 사용 가능 | 플랜지 세정기: | 사용 가능 |
| 연결: | 스크류 피팅 | ||
| 강조하다: | stainless steel mica band heater,electric heating element for extruder,cast heater with mica insulation |
||

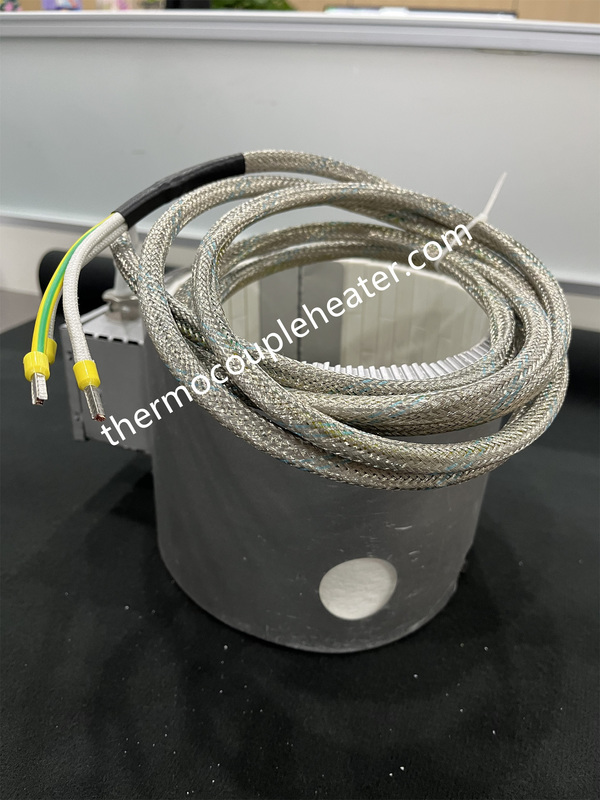

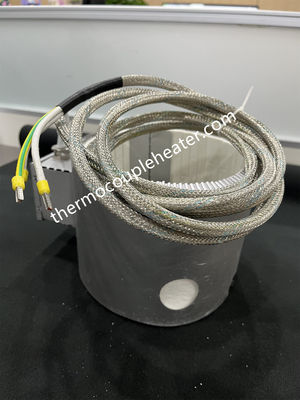

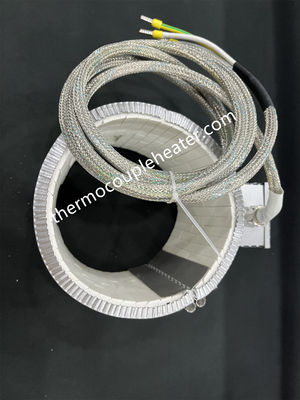

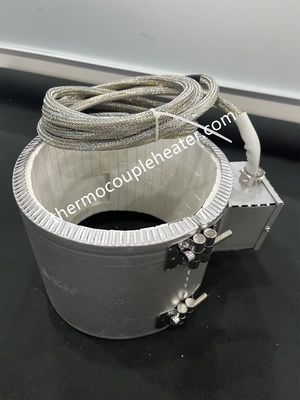

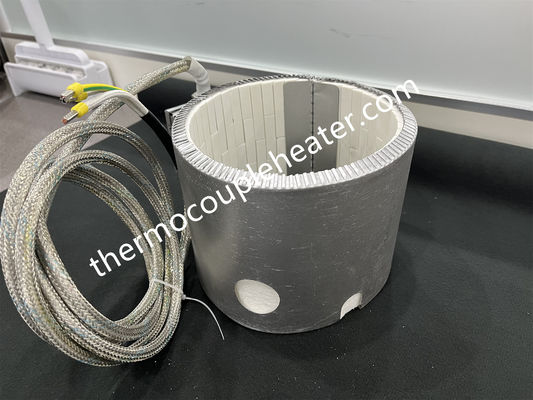

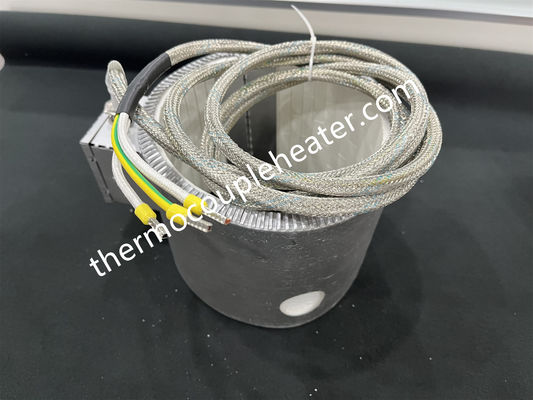

Electric Heating Element Stainless Steel Mica Band Heater for Extruder
Description:
1) GME Ceramic Band heaters are designed and manufactured out of 8 years of experience, for superior performance and life expectancy.
2) Ceramic band heaters primarily used for Plastic Processing machinery, depending upon applications, these heaters come with outer heat saving insulation covers, which provides the best combination of physical strength, high emissivity & good thermal conductivity to heat cylindrical parts, good for sheath temperature up to 5000C along with Energy Saving.
Specification:
Nominal Wall Thickness Premium Heat : ½"
Power Saver : ½" + 5/8" (Outer Insulation)
Power Saver PLUS :½" + 1.5" ( Outer Insulation)
Connection Fiber Glass Insulated- Metal Braided Flexible Cable (std. 12" long) mounted on rigid screw post terminals
|
Voltage
|
≤480V
|
||
|
Working temperature
|
0~400℃
|
||
|
Power
|
0.5-3.5w/cm2
|
||
|
Power deviation range
|
±5%
|
||
|
Insulation resistance
|
≥100 MΩ
|
||
|
Withstand voltage
|
1500V/min
|
||
|
Mini diameter
|
30mm
|
||
|
Termination Style
|
plug, ceramic block, screw or lead wire
|
||
|
Gap Locking Mechanism Type
|
Flange, Barrel Nuts or None
|
||
|
Holes availability
|
Customer- Design
|
||
Application:
1.Plastic Injection Molding Machines
2.Plastic Extruders
3. Oil Reclamation Equipment
4. Food and Candy Extruders
5. Drum Heating
6. Extrusion Dies
7. Holding Tanks
8. Blow Molding Machines
9. Food Service Warming
10. Hot Runner Molds
