Co., 주식 회사를 설계하는 우한 세계적인 금속
히이터 & 감지기의 초기 제조자
영업 및 지원:
|
제품 상세 정보:
결제 및 배송 조건:
|
| 전원: | 전기 같은 | 온도 범위: | -200~650C |
|---|---|---|---|
| 전압: | 12-480V | 프로브 재료: | 스테인레스 강 또는 니켈 |
| 스타일: | PT100, PT1000, PT500, Ｋ, Ｊ | 요소의 쌍 양: | 단순/이중 |
| 발열체: | 니크롬 저항 | 설치: | 넌 스레드 / 플랜지 / |
| 용법: | 온도 센서 | 특징: | 경제적 |
| 단자함의 타입: | 비분무 / 방수막 | 격리: | MGO |
| 강조하다: | K type thermocouple RTD,Multi core thermocouple sensor,Durable high response thermocouple |
||

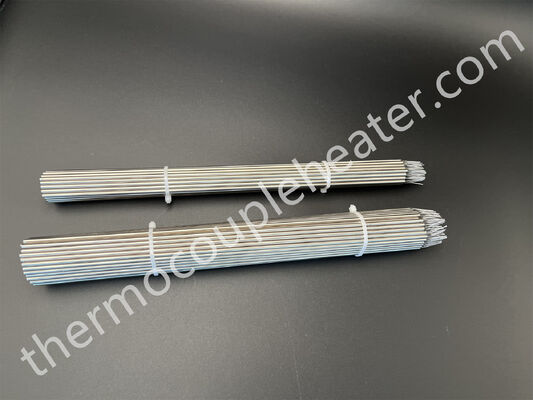

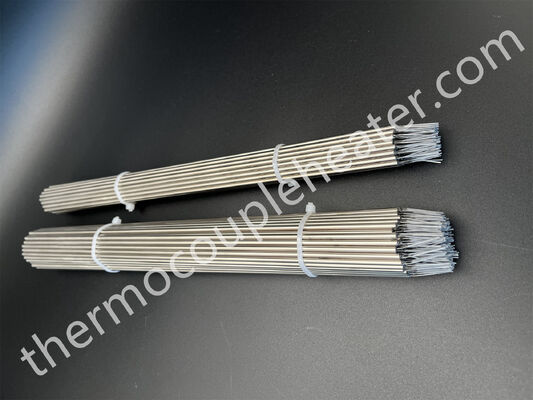

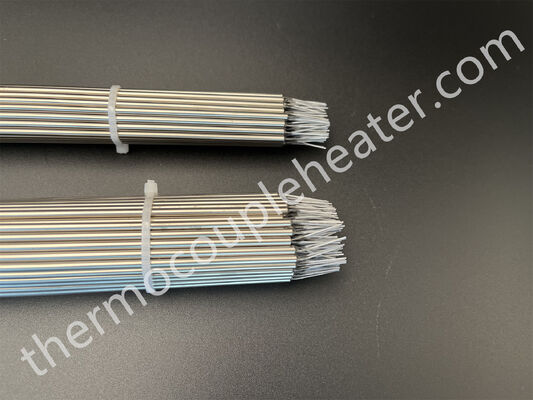

High Response Stronger Durable multi core K Type semi-finished Thermocouple
Description:
1) thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.
3) Magnesium Oxide insulated thermocouples, commonly referred as MgO thermocouples, are used in many process and laboratory applications. They are available in all thermocouple element types, a wide variety of sheath diameters and materials, they are rugged in nature and bendable, and their fairly high-temperature ratings make MgO thermocouples a popular choice for a multitude of temperature measuring applications.
Name: Mineral Insulated Cable
Type: K, N, E, J, T
Conductor material: NiCr-NiSi,NiCrSi-NiSi), NiCr-Konstantan, Fe-Konstantan, Cu-Konstantan
Insulator: 99.6% high purity MgO
Core number: 2, 4, 6
Sheath material: SS321(SS304), SS316, SS310, INCL600,601, Nicrobell,SS446,SS347,800,800H,825,INCONEL601,INCONEL625,GH4145 and GH3128
Dia(mm): from 0.25mm to 12.7mm
Application: connecting with thermocouple and instrument machine
MOQ: 100m
Certificate: ISO,SGS
Making sample time: all type in stock
Trade term: FOB, EXW, CIF, CFR
Payment term: T/T,Western Union, L/C
Advantage: Competitive price and best service
| Product Name | Code | Type | Sheath Material | Outer Dia(mm) | Temperature |
| Ni Cr-Ni Si | KK | K | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 600 | |||
| SS316 | 4.0-8.0 | 800 | |||
| 0.5-1.0 | 500 | ||||
| SS310 | 1.5-3.2 | 800 | |||
| INCL600 | 4.0-6.4 | 900 | |||
| 8.0-12.7 | 1000 | ||||
| Ni Cr Si-Ni Si | NK | N | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 600 | |||
| SS316 | 4.0-8.0 | 800 | |||
| 0.5-1.0 | 500 | ||||
| SS310 | 1.5-3.2 | 800 | |||
| INCL600 | 4.0-6.4 | 900 | |||
| 8.0-12.7 | 1000 | ||||
| Ni Cr-Konstantan | EK | E | SS304 | 0.5-1.0 | 400 |
| SS321 | 1.5-3.2 | 500 | |||
| SS316 | 4.0-8.0 | 800 | |||
| Fe-Konstantan | JK | J | SS304 | 1.0 | 300 |
| SS321 | 1.5-3.2 | 500 | |||
| SS316 | 4.0-8.0 | 800 | |||
| Cu-Konstantan | TK | T | SS304 | 1.0 | -200——100 |
| SS321 | 1.5-3.2 | 100-200 |
