| 껍질 소재: | 스테인레스 스틸 304, 321, 316L, 310S, 인코로이 | 핀 재료: | 스테인레스 스틸(표준) |
|---|---|---|---|
| 와트 밀도: | 강제 공기 적용 분야의 경우 최대 5W/cm²(32W/in²) | 전압 범위: | 110V, 220V, 240V, 380V, 415V, 최대 480V |
| 튜브 직경: | 8mm, 10mm, 12mm, 16mm, 20mm(맞춤형) | 터미널 유형: | 나사형 스터드(M4/M5/M6) 또는 리드선 |
| 강조하다: | W-shape finned tubular heater,high-efficiency tubular air heater,tubular heater with fins |
||

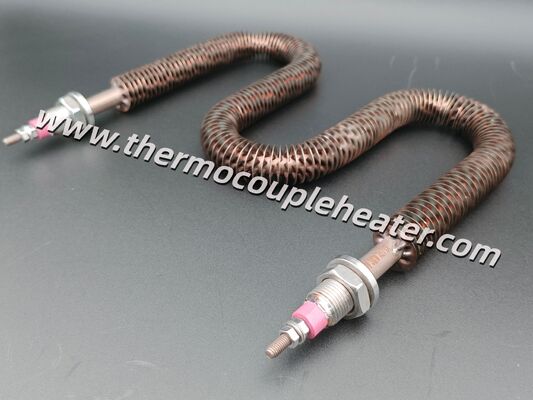

Our W-Shape Finned Tubular Heaters are specifically engineered for forced convection air heating applications. By wrapping continuous spiral fins around a high-quality tubular element, we significantly increase the surface area—up to 3 times compared to standard tubular heaters. This design allows for faster heat dissipation, lower surface temperatures, and a much longer service life for the heating element.

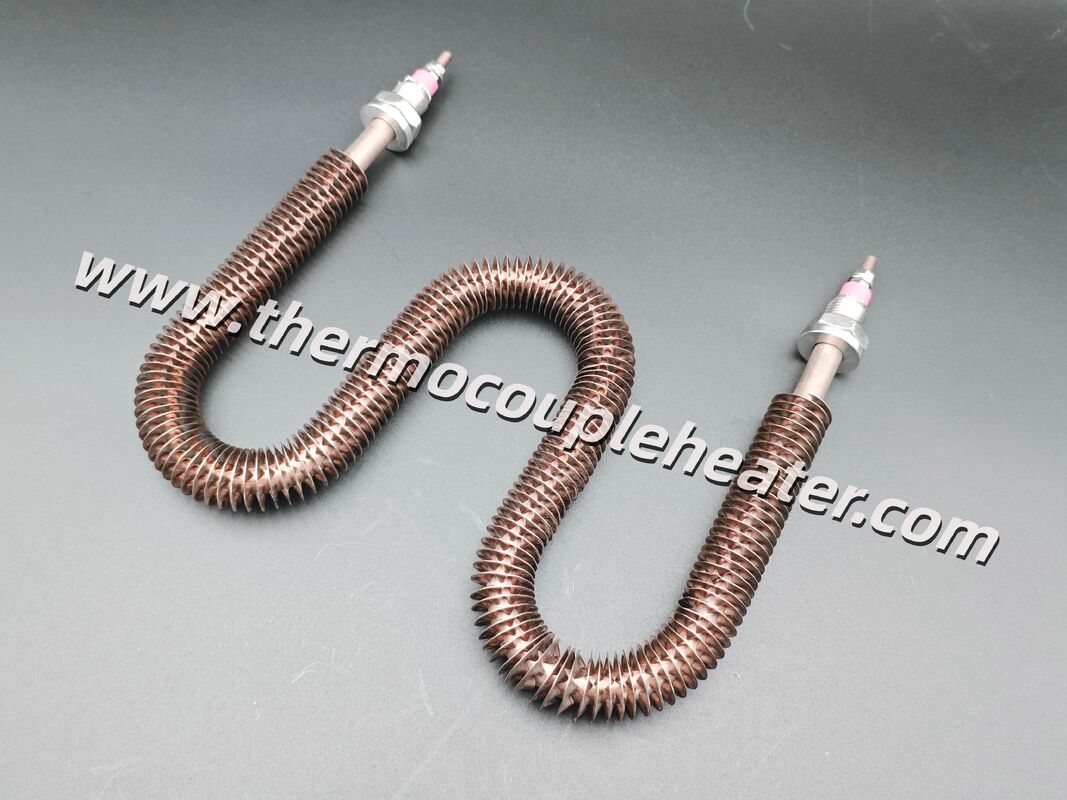

The unique W-bend configuration provides a compact footprint while maximizing the heating path, making it the ideal choice for industrial ovens, ducts, and load banks.
Superior Heat Dissipation: The helical-wound fins create a large surface-to-mass ratio, ensuring rapid heat transfer to the moving air stream and preventing overheating of the element.
W-Shape Compact Design: Precisely formed to provide high power density in restricted spaces, ensuring uniform air warming across the entire cross-section of your equipment.
Rugged Construction: Built with premium stainless steel or Incoloy sheaths and fins (SS304/SS321/SS310S) to withstand high-velocity airflow and corrosive environments.

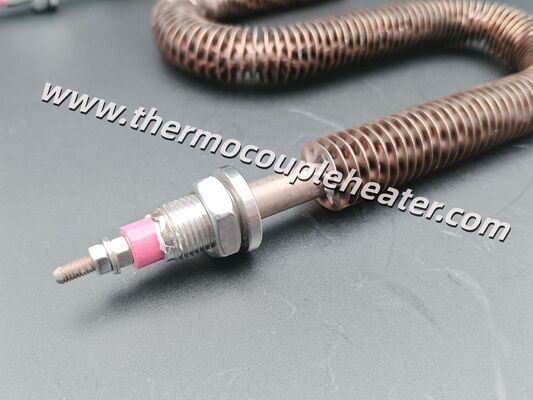

Safe Terminal Termination: Equipped with heavy-duty mounting studs and high-temperature ceramic insulators to ensure stable electrical connections and prevent short circuits.
Customizable Watt Density: Optimized for specific airflow velocities to ensure maximum efficiency without compromising the heater's structural integrity.
Fin Material: Stainless Steel (Standard) or Copper (for specialized applications).
Tube Diameter: Available in 8mm, 10mm, 12mm, 16mm (Customizable).
Bending Patterns: W-shape, U-shape, or M-shape to fit your specific housing.
Mounting Options: Available with or without mounting brackets/flanges for easy installation.
Voltages & Wattages: Fully customizable to meet global electrical standards.
Industrial Ovens & Dryers
HVAC Duct Heaters
Load Banks & Resistive Testing
Shrink Tunnels & Packaging Lines
Forced Air Comfort Heaters
Heat Treating & Annealing Furnaces
Dehumidification Systems
Air Process Heating
Space Heating for Cabins & Enclosures
Textile & Paper Drying Machinery
Food Processing Equipment
Climatic Chambers & Lab Equipment
