| 유형: | 이자형 | 단열재: | 테프론 |
|---|---|---|---|
| 재킷 소재: | 테프론 | 차원: | 12-32AWG, 맞춤형 |
| 온도 범위: | 최대 260℃ | 색상: | ANSI 표준 또는 사용자 정의 |
| 강조하다: | ANSI Type E thermocouple wire,24AWG PFA Teflon thermocouple wire,Extension grade thermocouple cable |
||

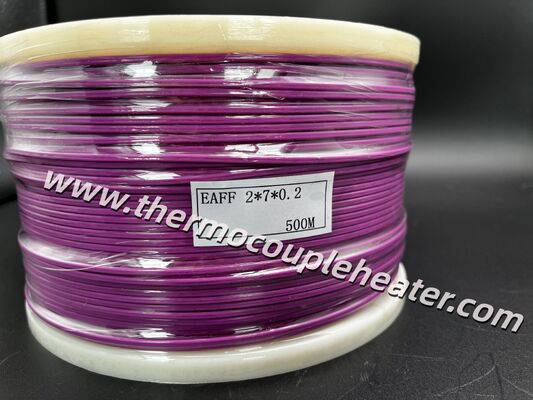

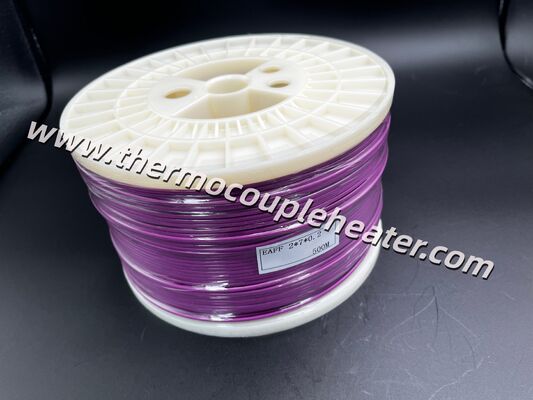

ANSI Type E Extension Grade Thermocouple Wire: 24AWG PFA Teflon/Teflon Insulation
Our Type E (Chromel/Constantan) extension wire is the cost-effective solution for long-distance signal transmission from sensors to control rooms. As an Extension Grade (EX) cable, it is specifically designed to provide a reliable electrical match to Type E thermocouples while significantly reducing overall project costs compared to using expensive thermocouple-grade wire for full-run cabling.
Featuring premium PFA Teflon insulation, this 24AWG stranded wire maintains its physical integrity in extreme environments from -200°C up to +260°C, offering excellent resistance to chemicals and moisture for industrial-scale installations.
| Conductor | |
| Type | EX |
| Grade | Extension grade |
| Material | + Chromel / - Constantan |
| Constructure | Multi-stranded |
| Number of Strands / Strand Diameter (mm) | 2 x 7 / 0.2mm |
| Section Area (mm2) | 2 x 24AWG approx. 0.2mm² |
| Insulation | |
| Material | Teflon PFA |
| Color | +Purple / -Red |
| Number of Pairs | 1 pair |
| Laying | In parallel |
| Outer Jacket | |
| Material | Teflon PFA |
| Color | Purple |
| Overall | |
| Operating Temperature |
Up to +260℃ Continuous |
When asking for quotations, customers are required to provide order specifications, including
- Type
- Working temperature
- Conductor Size
- Constructure
- Color Code
- Order Quantity
Example:
