| 전원: | 전기 같은 | 차원: | 맞춤형 |
|---|---|---|---|
| 전압: | 12-480V | 외장재: | 스테인레스 스틸 또는 니켈 |
| 스타일: | Ｋ, Ｊ, | 리드선: | 구리,, 섬유 유리 실리콘 |
| 단열재: | MGO | 발열체: | 니크롬 저항 |
| 나사산: | 사용 가능 | 플랜지 세정기: | 사용 가능 |
| 연결: | 스크류 피팅 | ||
| 강조하다: | Tubular water immersion heater,Flange heater for liquids,Tubular heater with flange |
||

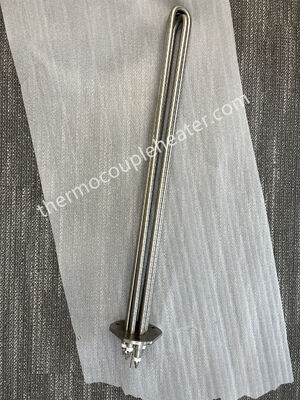

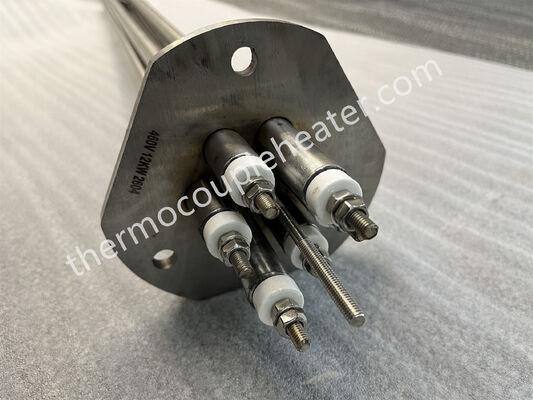

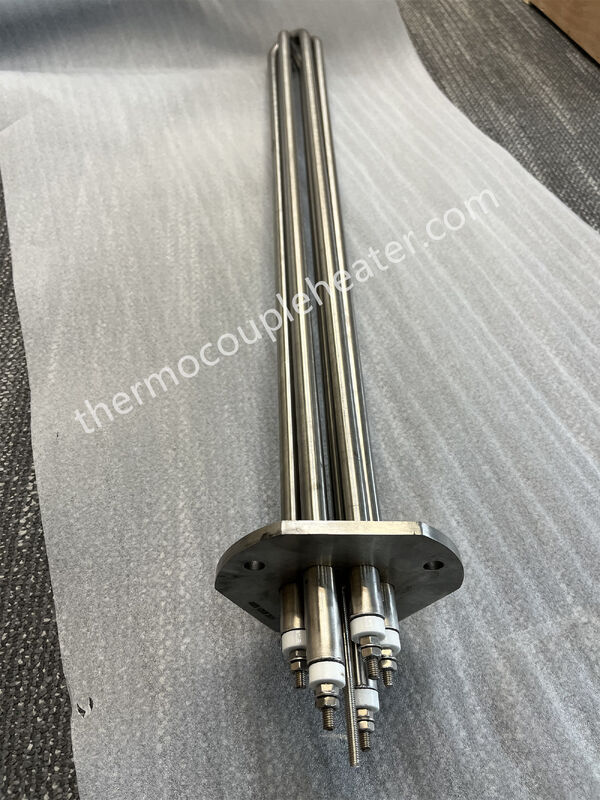

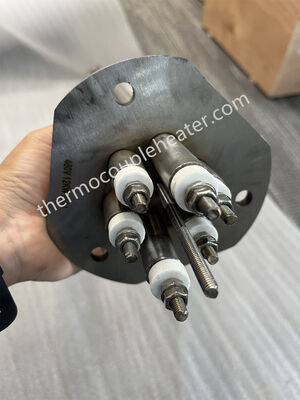

Tubular Water Immersion Flange Heater for water and other liquids
Description:
1) GME immersion flange heaters are easy to install and maintain. Designed for heating liquids and gases in tanks and pressure vessels, immersion flange heater are ideal for applications requiring higher kilowatts.
2) GME immersion flange heaters are made with tubular elements brazed or welded to a flange. Stock flange immersion heaters are equipped with a general purpose terminal enclosure.
3) GME immersion flange heater, with tubular elements, also answer the need for liquid immersion heating applications requiring high kilowatts in small water tanks. The tubular element’s unique flat surface geometry packs more power in a smaller bundle, with lower watt density, making it especially well-suited for petroleum-based liquid heating applications.
Specification:
* HI-POT TEST: 1500V/S min cold condition.
* Insulation resistance: 20M Ω min
* Leakage current: 0.75ma max
* Power tolerance: +5%,-10%
* Escape of current (when cold): <=0.1mA a 242 v.
* Insulation (when cold): 5 Min Ohmios 500 Watts minimum
* Dielectric strength:1500v. 1/seg
* Tolerance of length:+/-1.5%
* Tolerance of diameter: -0.01 a -0.06 m/m
* Tolerance of cut of connexion: +/-15 mlm
* Power tolerance (w):5 % - 10 %
